Application Challenges & Motivation

A Normal Day at the Office

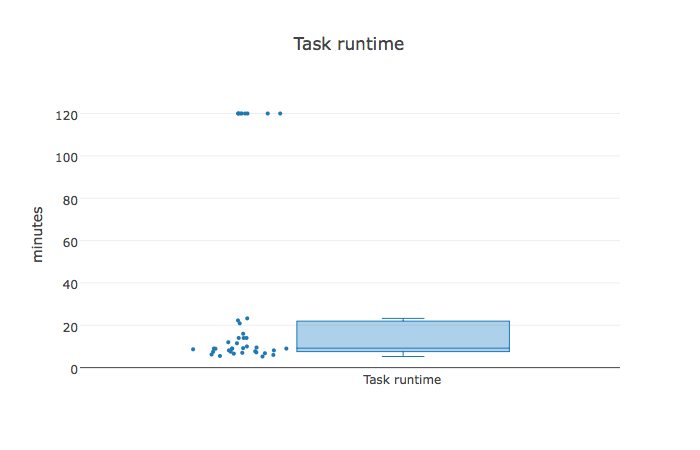

Strange runtime distribution of homogeneous tasks

Finding the Culprint

• Added logging to the application to understand where time is spent
• Some tasks spent 10x longer downloading input dataset
• A faulty edge switch caused external connectivity issues on some nodes
• Introduced helper tasks that collect process-level metrics
• Some tasks spent a hughe amount of time in IO Wait
• A strange problem with Lustre caused slow filesystem I/O on a small set of nodes

Another Intresting Case

Again, an unexpected runtime distribution of supposedly homogeneous simulation tasks

Finding the Culprint

• Used the same instrumentation strategy
• Outlier tasks run out of memory and stall
• Specific structural properties of the input data would cause the algorithm to take a different trajectory

Consequences

• We encountered unexpected "dynamic behavior", both on the system as well as on the application side
• Knowing that these are no edge cases, we started making our "debugging" approach a more vital part of the application framework:
  • Collecting process- and OS-level information during all runs
• Applying simple adaptive strategies to mitigate issues at runtime:
• Blacklist 'weird' nodes
• Reducing the task-packing (preempt other tasks on the node) when memory usage exceeds threshold

Experience & Lessons Learned

• Instrumetation requires a lot of effort
• Collecting and analysing data (at scale) is non-trivial
• Interpreting and feeding the data to the application is difficult
• Existing tooling is sparse and mostly geard toward post-mortem, parallel code debugging
• Without knowing and understanding the platform "anatomy" and context, data can be difficult to interpret, e.g., what is considered "poor" I/O, what is the spatial layout of processes across nodes?

Experience & Lessons Learned cont.

• Application-specific instrumentation is wide spread technique to mitigate heterogeneity, dynamic behavior, etc.
• Adressing the issue is expensive, but ignoring it can be expensive, too:

2

Telemetry as HPC Platform Service

Status Quo: Application-Driven

Application-level collection and processing of telemtry data can cause a lot of overhead.

Platform Service Approach

Telemetry service takes over data collection and provides data access and higher-level functions to applications

Requirements

• Captures the time-variant physicla anatomy and properties of applications
• Captures the time-variant anatomy and properties of the HPC platform
• Describes the mapping between the two (contex!)
• Allows for arbitrary levels of detail
• Provides programmatic access to the data
• Allows offloading data analytics, e.g. extracting trends from streams of raw data
• Has notifications capabilities

Requirements cont.

• Keeps historic data (possibly in condensed form)
• Is deployable at scale (think exascale!)
• Consistent across platforms

3

Context Graph Model

Graph-Based Model

• Provides the context in which time-series can be embedded
• We use attributed graphs to describe entities and their relationships
• Graphs provide a intuitive way to model arbitrary levels of complexity
• A single context graph (CG) captures the connections between the platform anatomy (sub-)graph (PAG) and the application anatomy (sub-)graphs (AAG)

Spatial-Temporal Dynamics

• Anatomy and structure of platform and applications is not static:
• Application process start and stop
• Nodes appear and disappear
• Hardware (e.g., GPUs or FPGAs) is added
• ...
• All nodes and edges have timestamps that qualify their existence
• To get a snapshot of the platform and applications at a specific point in time, the graph can be queried for a specific time or time range

4

Interaction and Interface

User- / Application-Facing API

• Language-Agnostic HTTP/REST API allows to:
• Explore / traverse the context graph
• Register simple "server-side" "derived metrics" functions
• Define and register call-backs (Websockets)
• GraphQL for complex graph queries

{
 process(id: 1) {
   siblings {
     processes {
       cpu_iowait
       memory_uses
     }
   }
 }
}


5

Prototype

System Components

6

Discussion

This is how we envision an ideal system from the application developer's / user's perspective
